After the groundbreaking success of the »STEPSTAR«, the »STARLINE« welcomes its latest addition: The trailers of the »TRAILSTAR« series score, like their predecessors, with the proven Goldhofer quality at an attractive price. The modern design impresses with many familiar details of the »STEPSTAR« series, such as innovative and flexible ramps, low loading height and an intelligent load securing system. A special highlight of the »TRAILSTAR« is the extended loading platform to the front, through which an optimized center of load is achieved.
ON THE ROAD WITH HIGH PAYLOADTHANKS TO 1 t LOWER DEAD WEIGHT
The trailers of the »TRAILSTAR« series come with an outstanding payload-to-weight ratio: The advanced design allows allows extremely high payloads with comparatively low dead weight. At the same time you can always rely on the proven Goldhofer quality and bring your load safely to its destination with the »TRAILSTAR«.
1 t HIGHER PAYLOAD IN DAILY OPERATION THANKS TO LOWER DEADWEIGHT*
ECONOMIC FLEET UTILIZATION
* »TRAILSTAR« 4 compared to TU 4 expert
MORE PAYLOAD
- Very light frame construction
- Optimized vehicle extension (optional)
- Higher stability and payload due to center tube design
MORE SAFETY
- Safe loading and transport with a width of more than 2,500 mm with light, stable widening planks
- Lightweight components increase payload and work safety
- Further weight saving with safe TRAFFIDECK™ GO flooring (optional)
OPTIMIZED CENTER OF LOADVIA EXTENDED LOADING PLATFORM TO THE FRONT
A special highlight of the »TRAILSTAR« is the extended loading platform to the front, through which an optimized center of load with regard to the axle groups is achieved.
OPTIMIZED VEHICLE UTILIZATION
MORE POSSIBILITIES IN DAILY OPERATION
PREMIUM COMPONENTS
The use of premium components as a standard gives the »STEPSTAR« semi lowloaders their long service life. The high degree of standardization means that spare parts can be obtained quickly and easily if required.
LIFETIME TEST UNDER THE TOUGHEST CONDITIONS
CONFIRMED GOLDHOFER PREMIUM QUALITY
EQUIPPED FOR THE FUTURE WITH AIR SUSPENSION
AXLE LOAD DISPLAY VIA TIM (TRAILER INFORMATION MODULE)
Low-maintenance BPW axles offering top quality
Simple and fast bearing and brake replacement saves approx. 90 min. per axle
Best delivery of spare parts for high vehicle availability
Ultra-modern and robust polymer wings for efficient splash protection and significant weight saving
Tail support legs with convenient foot or optional hydraulic operation

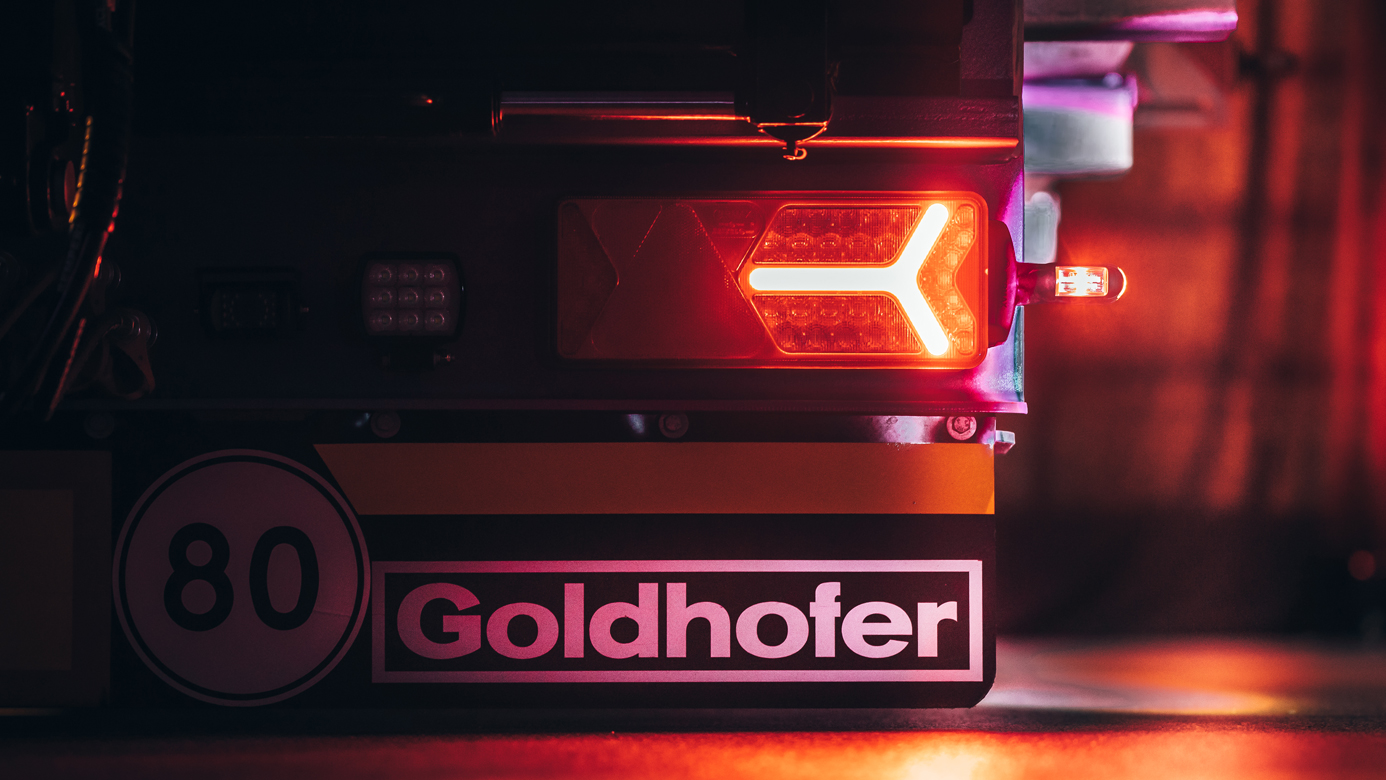

Robust and economical ERMAX full LED lighting system
Impact-resistant lighting
Encapsulated connecting plugs for low wear even under extreme conditions
LOAD SECURING
The »TRAILSTAR« series convinces with the same extensive accessories portfolio as the »STEPSTAR«. The optional TRAFFIDECKTM GO deck covering is also available for enhanced load security and reduced lashing requirements.
FAST AND RELIABLE LOAD SECURING
HIGH LEVEL OF SECURITY FOR DAY-TO-DAY OPERATIONS
IN COMPLIANCE WITH THE STRICTEST REGULATIONS
Wader container pockets
Recessed in the loading platform for ease of driving over
Safe transport of containers
Stake pockets
Simple securing of small parts or long material
Fast, efficient load securing through positive-locking
Drive-over recessed lashing lugs on the tail
Retractable in the frame
Optimum lashing angle for efficient lashing to the front
Loading platform equipped with RUD Optilash Fix 10 t lashing rings
Retractable
Damaged rings can be replaced easily
Anchor points in the frame and the excavator recess
Simple securing of small parts
High load capacity
Optional TRAFFIDECK™ GO floor covering
More loading height and 80% lighter compared to conventional rubber mats
High friction coefficient ensures optimum load securing
Sanding of the loading area ensures safety in all weather conditions
EXCAVATOR BOOM RECESS
The special feature of the extra long and wide excavator recess of the »TRAILSTAR« trailers is that it has no cross members and is open to the rear. This makes it possible to carry even bigger excavator booms while simultaneously reducing overall height. With up to three removable bulkheads, even small parts can be secured efficiently and space-saving.
SIMPLIFIED OBTAINMENT OF PERMITS
COST-EFFECTIVE TRANSPORTATION
RAMPS
The long and light ramps of the »STARLINE« are a further advantage in day-to-day transport operations. With a low ramp angle and the ground-friendly lowering mechanism, loading is child’s play.
FAST AND EASY LOADING
EFFICIENT RETURN JOURNEY
Suitable for almost all self-propelled cargos
Up to 3,000 mm width for safe drive-on
Completely shiftable for 3-wheeled vehicles
Safe and convenient operation of the ramps
Optional radio remote control
Integrated ramp protection for time saving and safe transport
Attachment and removal using a forklift for increased efficiency
Retrofitting for all ramps
Staged investment
Flexible approach to the transport situation
Ramp portfolio
Removable ramps
Capacity 24 t / Width 450 mm
Capacity 32 t / Width 600 mm
Mechanical folding ramps (one-piece)
Capacity 24 t / Width 600 mm
Capacity 32 t / Width 600 mm
Hydraulic folding ramps (one-piece)
Capacity 38 t / Width 800 mm
Capacity 52 t / Width 800 mm
Hydraulic folding ramps (two-piece)
Capacity 38 t / Width 800 mm
Capacity 52 t / Width 800 mm
Hydraulic folding ramps (two-piece)
Capacity 38 t / Width 1,000 mm
