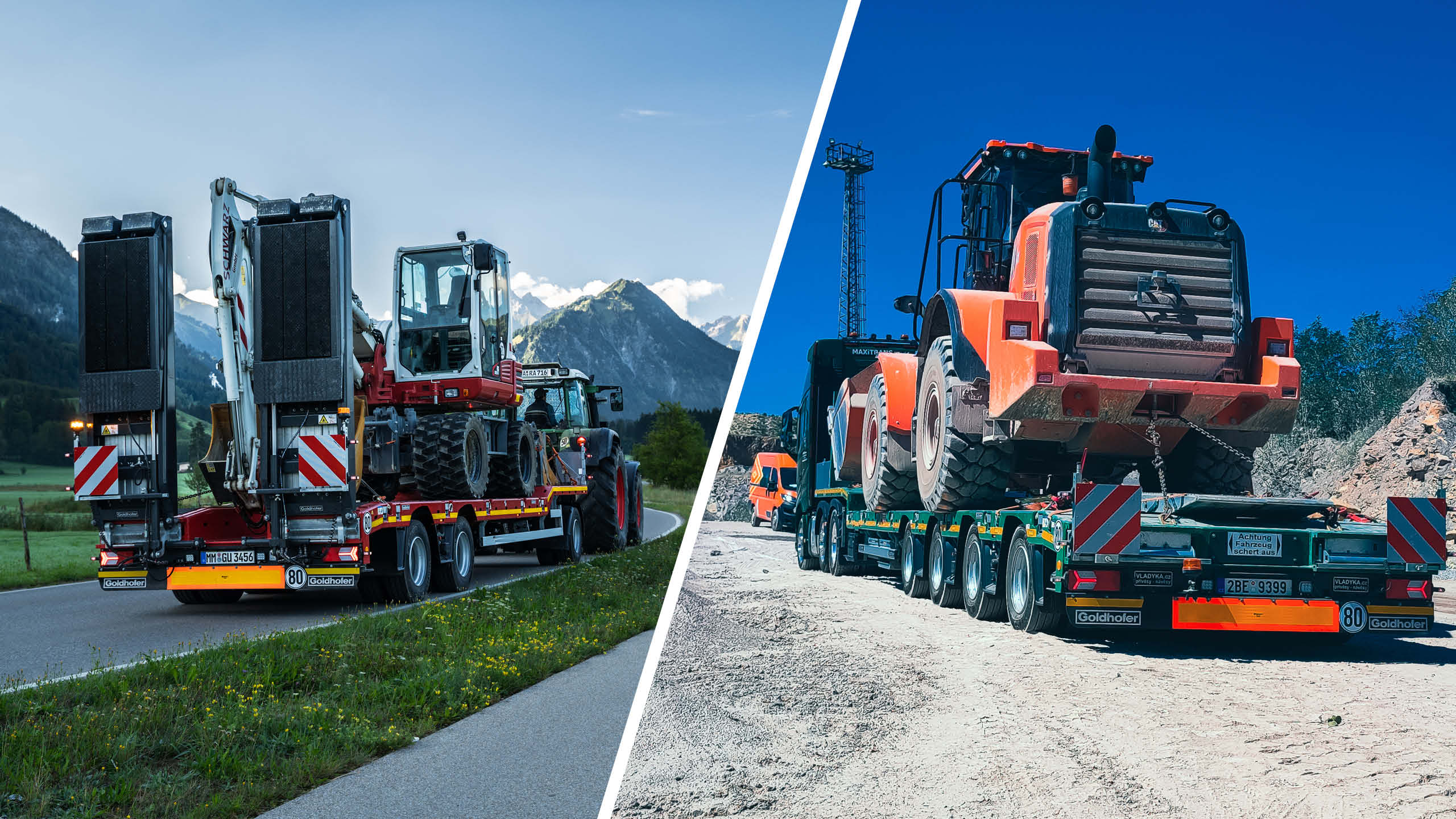

GOLDHOFER »STAR« FAMILY

The modern design of the »STAR« family impresses with many familiar details, such as innovative and flexible ramps, low loading height and a sophisticated load securing concept. However, the outstanding payload-to-dead-weight ratio is particularly noteworthy: The intelligent design allows extremely high payloads with comparatively low dead weight. At the same time, you can always rely on the proven Goldhofer quality and safely transport the load to its destination with your »STAR«. With the easy-to-operate trailers and semi-lowloaders of the »STAR« family, you are perfectly equipped for daily use in the payload range of up to 70 t.

»TRAILSTAR«

TECHNICAL FEATURES

Loading area

+   Dimension B:   10,000 mm - 11,660 mm (depending on vehicle configuration)

+


Loading platform length
1+2
1+3
2+2
2+3

up to centered cranking outer
5,900 - 6,900 mm
6,500 - 7,000 mm
5,750 - 6,250 mm 7,000 - 8,000 mm
6,750 mm 8,000 mm


+   Vehicle width   2,550 mm
+   Axle spacing   1,410 mm
+   Max. steering angle   ± 20°
+   Excavator recess
Length: 3,050 mm
Width: 760 mm
Depth: 310 mm


+   Number of axles   3 (1+2), 4 (1+3, 2+2), 5 (2+3)

Tires

+



215/60 R 17.5 (205/65 R 17.5)
Axle load:
Ride height:




10 t at 80 km/h
780 mm (-60/+140)

+



245/70 R 17.5
Axle load:
Ride height:




10 t / 12 t at 80 km/h
855 mm (-60/+140)

Ramps



+   Removable ramps





Length:
Capacity:
Width:
Ramp angle:



2,400 mm
24 t / 32 t
450 mm / 600 mm
≈ 15° (205/65 R 17.5)
≈ 17° (245/70 R 17.5)
+   One-piece mechanical folding ramps





Length:
Capacity:
Width:
Ramp angle:



2,500 mm
24 t / 32 t
600 mm
≈ 14° (205/65 R 17.5)
≈ 16° (245/70 R 17.5)
+   One-piece hydraulic folding ramps





Length:
Capacity:
Width:
Ramp angle:



3,000 mm
38 t / 52 t
800 mm
≈ 11° (205/65 R 17.5)
≈ 13° (245/70 R 17.5)
+   Two-piece hydraulic folding ramps
    Length:
Capacity:
Width:
Ramp angle:		   4,300 mm
38 t / 52 t
800 mm
≈ 8° (205/65 R 17.5)
≈ 9° (245/70 R 17.5)
+   Two-piece hydraulic folding ramps





Length:
Capacity:
Width:
Ramp angle:



4,900 mm
38 t
1.000 mm
≈ 7° (205/65 R 17.5)
≈ 8° (245/70 R 17.5)



ACCESSORIES AND OPTIONS

Front

+



Various towbars

+



Screwable stake pocket (vertical)

+



Screwable road roller stem

+



Optional side boards

+



Optional end boards
+

Country-specific system interfaces for pneumatics and electronics

Loading area

+



Wader container pockets

+



Pocket stake stripes

+



Aluminium or steel cover for excavator boom recess

Rear

+



Rear climbing pads

+



LED rear light

+



Radio remote control

+



"Convoi-Exceptionnel" warning sign

+



Warning package (including several items)
+   Rear view camera

»STEPSTAR«

TECHNICAL FEATURES

Gooseneck

+   Fifth wheel load:

18.5 t / 26 t Standard gooseneck
18.5 t short gooseneck for crane superstructures
18.5 t »MEGA« gooseneck

+



Swing clearance radius:



1,900 mm
2,100 mm
2,300 mm
2,400 mm

Loading area

+



Extension:



with / without

+



Number of axles:
Wheel recess vehicle:



3-5
3-4

+



Axle spacing:



1,410 mm

+



Max. steering angle:



± 20°
+   Forced steering   ± 45°

+



Vehicle width:



2,550 mm

+



Wheel recess:



without / 1 / 2

+



Excavator recess:



with / without

Length:

max. 3,850 mm

Width:

760 mm

Depth:

310 mm



Tires

+



205/65 R 17.5
Axle load:
Ride height:




8.24 t at 80 km/h
790 mm (-60/+140)

+



245/70 R 17.5
Axle load:
Ride height:




10 t / 12 t at 80 km/h
855 mm (-60/+140)

Ramps



+   Removable ramps





Length:
Capacity:
Width:
Ramp angle:



2,400 mm
24 t / 32 t
450 mm / 600 mm
≈ 15° (205/65 R 17.5)
≈ 17° (245/70 R 17.5)
+   One-piece mechanical folding ramps





Length:
Capacity:
Width:
Ramp angle:



2,500 mm
24 t / 32 t
600 mm
≈ 14° (205/65 R 17.5)
≈ 16° (245/70 R 17.5)
+   One-piece hydraulic folding ramps





Length:
Capacity:
Width:
Ramp angle:



3,000 mm
38 t / 52 t
800 mm
≈ 11° (205/65 R 17.5)
≈ 13° (245/70 R 17.5)
+   Two-piece hydraulic folding ramps
    Length:
Capacity:
Width:
Ramp angle:		   4,300 mm
38 t / 52 t
800 mm
≈ 8° (205/65 R 17.5)
≈ 9° (245/70 R 17.5)
+   Two-piece hydraulic folding ramps





Length:
Capacity:
Width:
Ramp angle:



4,900 mm
38 t
1.000 mm
≈ 7° (205/65 R 17.5)
≈ 8° (245/70 R 17.5)



ACCESSORIES AND OPTIONS

Gooseneck

+



Pocket stakes on the gooseneck

+



Electric cable winch

+



Aluminium loading ramp

+



Optional side and end board combinations for the neck

+



Compensating chocks for gooseneck chamfer
+

Country-specific system interfaces for pneumatics and electronics

Loading area

+



Wader container pockets

+



Pocket stake stripes

+



Long load support

+



Aluminium or steel cover for excavator boom recess

+



Hook-in wheel recesses and bridging rails

+



Intermediate table

Rear

+



Rear climbing pads

+



LED rear light

+



Radio remote control

+



"Convoi-Exceptionnel" warning sign

+



Warning package (including several items)
+   Rear view camera
